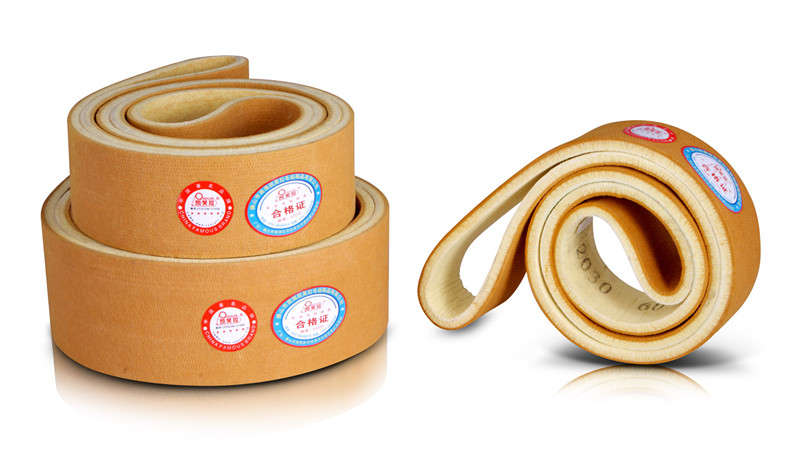

Model | Belt-PHH |
Color | Surface Brown and Yellow Underneath |
Material | PBO Fiber +Para-aramid Fiber + Para-aramid Tension Member |
Working Temperature | 600℃ |
Application | Pick-up table and cooling table for aluminium extrusion handling system, especially for profiles with large sizes or irregular forms |
Selling Points | High Density Structure, No Delaminating or Fuzziness, No Elongation under Heavy Loads, Abrasion Resistance with Smooth Cutting and Even Surface, Excellent Belt Tracking |
Available Specification
Length：1750mm ~ 11000mm
Width：20mm ~ 1300mm
Total Thickness：6mm, 8mm, 10mm, 12mm
PBO Thickness：2mm, 3mm, 4mm, 5mm
